Game.ComponentCreatureModel

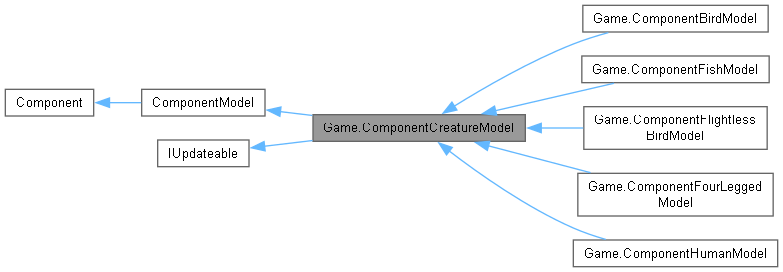

类 Game.ComponentCreatureModel 继承关系图:

Game.ComponentCreatureModel 的协作图:

Public 成员函数
override void	Animate ()
void	AnimateCreature ()
override void	Load (ValuesDictionary valuesDictionary, IdToEntityMap idToEntityMap)
override void	OnEntityAdded ()
virtual void	Update (float dt)
virtual Vector3	CalculateEyePosition ()
virtual Quaternion	CalculateEyeRotation ()
Public 成员函数 继承自 Game.ComponentModel
virtual ? Matrix	GetBoneTransform (int boneIndex)
virtual void	SetBoneTransform (int boneIndex, Matrix? transformation)
virtual void	CalculateAbsoluteBonesTransforms (Camera camera)
virtual void	CalculateIsVisible (Camera camera)
virtual void	DrawExtras (Camera camera)
override void	Load (ValuesDictionary valuesDictionary, IdToEntityMap idToEntityMap)
virtual void	SetModel (Model model)
virtual void	ProcessBoneHierarchy (ModelBone modelBone, Matrix currentTransform, Matrix[] transforms)
Public 成员函数 继承自 Game.IUpdateable

Public 属性
SubsystemTime	m_subsystemTime
SubsystemGameInfo	m_subsystemGameInfo
ComponentCreature	m_componentCreature
Vector3?	m_eyePosition
Quaternion?	m_eyeRotation
float	m_injuryColorFactor
Vector3	m_randomLookPoint
Random	m_random = new()
Public 属性 继承自 Game.ComponentModel
SubsystemSky	m_subsystemSky
bool	IsSet
bool	Animated = false
ComponentFrame	m_componentFrame
Model	m_model
Matrix?[]	m_boneTransforms
float	m_boundingSphereRadius

属性
float	Bob [get, set]
float	MovementAnimationPhase [get, set]
float	DeathPhase [get, set]
Vector3	DeathCauseOffset [get, set]
Vector3?	LookAtOrder [get, set]
bool	LookRandomOrder [get, set]
float	HeadShakeOrder [get, set]
bool	AttackOrder [get, set]
bool	FeedOrder [get, set]
bool	RowLeftOrder [get, set]
bool	RowRightOrder [get, set]
float	AimHandAngleOrder [get, set]
Vector3	InHandItemOffsetOrder [get, set]
Vector3	InHandItemRotationOrder [get, set]
bool	IsAttackHitMoment [get, set]
Vector3	EyePosition [get]
Quaternion	EyeRotation [get]
UpdateOrder	UpdateOrder [get]
属性 继承自 Game.ComponentModel
Vector3	ModelOffset [get, set]
	模型偏移
float	Transparent [get, set]
	模型透明度
float	ModelScale [get, set]
	模型大小缩放
string	TextureRoute [get, set]
	纹理路径
string	ModelRoute [get, set]
	模型路径
float?	Opacity [get, set]
Vector3?	DiffuseColor [get, set]
Vector4?	EmissionColor [get, set]
Model	Model [get, set]
Texture2D	TextureOverride [get, set]
virtual Func< bool >	OnAnimate [get, set]
bool	CastsShadow [get, set]
int	PrepareOrder [get, set]
virtual ModelRenderingMode	RenderingMode [get, set]
int[]	MeshDrawOrders [get, set]
bool	IsVisibleForCamera [get, set]
Matrix[]	AbsoluteBoneTransformsForCamera [get, set]
属性 继承自 Game.IUpdateable
float	FloatUpdateOrder [get]

成员函数说明

Animate()

override void Game.ComponentCreatureModel.Animate ( )

virtual

重载 Game.ComponentModel .

函数调用图:

AnimateCreature()

void Game.ComponentCreatureModel.AnimateCreature ( )

abstract

这是这个函数的调用关系图:

CalculateEyePosition()

virtual Vector3 Game.ComponentCreatureModel.CalculateEyePosition ( )

virtual

被 Game.ComponentFishModel , 以及 Game.ComponentHumanModel 重载.

CalculateEyeRotation()

virtual Quaternion Game.ComponentCreatureModel.CalculateEyeRotation ( )

virtual

被 Game.ComponentHumanModel 重载.

Load()

override void Game.ComponentCreatureModel.Load	(	ValuesDictionary	valuesDictionary,
		IdToEntityMap	idToEntityMap )

OnEntityAdded()

override void Game.ComponentCreatureModel.OnEntityAdded

(

)

Update()

virtual void Game.ComponentCreatureModel.Update ( float dt )

virtual

实现了 Game.IUpdateable.

被 Game.ComponentBirdModel, Game.ComponentFishModel, Game.ComponentFlightlessBirdModel, Game.ComponentFourLeggedModel , 以及 Game.ComponentHumanModel 重载.

函数调用图:

类成员变量说明

m_componentCreature

ComponentCreature Game.ComponentCreatureModel.m_componentCreature

m_eyePosition

Vector3? Game.ComponentCreatureModel.m_eyePosition

m_eyeRotation

Quaternion? Game.ComponentCreatureModel.m_eyeRotation

m_injuryColorFactor

float Game.ComponentCreatureModel.m_injuryColorFactor

m_random

Random Game.ComponentCreatureModel.m_random = new()

m_randomLookPoint

Vector3 Game.ComponentCreatureModel.m_randomLookPoint

m_subsystemGameInfo

SubsystemGameInfo Game.ComponentCreatureModel.m_subsystemGameInfo

m_subsystemTime

SubsystemTime Game.ComponentCreatureModel.m_subsystemTime

属性说明

AimHandAngleOrder

float Game.ComponentCreatureModel.AimHandAngleOrder

getset

AttackOrder

bool Game.ComponentCreatureModel.AttackOrder

getset

Bob

float Game.ComponentCreatureModel.Bob

getset

DeathCauseOffset

Vector3 Game.ComponentCreatureModel.DeathCauseOffset

getset

DeathPhase

float Game.ComponentCreatureModel.DeathPhase

getset

EyePosition

Vector3 Game.ComponentCreatureModel.EyePosition

get

EyeRotation

Quaternion Game.ComponentCreatureModel.EyeRotation

get

FeedOrder

bool Game.ComponentCreatureModel.FeedOrder

getset

HeadShakeOrder

float Game.ComponentCreatureModel.HeadShakeOrder

getset

InHandItemOffsetOrder

Vector3 Game.ComponentCreatureModel.InHandItemOffsetOrder

getset

InHandItemRotationOrder

Vector3 Game.ComponentCreatureModel.InHandItemRotationOrder

getset

IsAttackHitMoment

bool Game.ComponentCreatureModel.IsAttackHitMoment

getset

LookAtOrder

Vector3? Game.ComponentCreatureModel.LookAtOrder

getset

LookRandomOrder

bool Game.ComponentCreatureModel.LookRandomOrder

getset

MovementAnimationPhase

float Game.ComponentCreatureModel.MovementAnimationPhase

getset

RowLeftOrder

bool Game.ComponentCreatureModel.RowLeftOrder

getset

RowRightOrder

bool Game.ComponentCreatureModel.RowRightOrder

getset

UpdateOrder

UpdateOrder Game.ComponentCreatureModel.UpdateOrder

get

实现了 Game.IUpdateable.

---

该类的文档由以下文件生成:

• Component/ComponentCreatureModel.cs
